Heat Sink for IGBT Power Module

Heat Sink for IGBT Power Module

A heat sink for IGBT is a vital component used to transfer heat generated by the device to other cooling medium like air or liquid.

Overview

A heat sink for IGBT is a vital component used to transfer heat generated by the device to other cooling medium like air or liquid. Heat sink for IGBT power module is  very important in the entire thermal management system

of electric vehicles. IGBT module serves as high-voltage control switching

component. IGBT is found in battery management system, motor control system, electric air-conditioning control system, charging system, etc.



Right Thermal Conductivity



Thermal conductivity is particularly important for thermal management system  of the IGBT.  OC-ETP®  is used in heat sink applications where thermal conductivity is paramount. OC-ETP®has a very high thermal conductivity due to the high purity of copper. Flatness control is also critical for the fine tolerances required. OC-ETP® has successfully supplied quality products to the major heat-sink producers for many years.



Our related products :



Copper heat sinks manufactured by Oriental Copper are available in 2 grades including  high conductivity Oxygen Free (with oxygen content less than 5 ppm.) and high conductivity electrolytic tough pitch copper (OC-ETP®). Both are high in copper purity with an electrical conductivity of approximately 101% IACS.

Edit Content

Temper

All temper grades meet International standard.

Properties

The raw material is pure copper cathodes grade “A” registered brand with copper purity of 99.99%. This allows our high quality copper busbar and rod to meet all International Standards.

  1. Volume Resistivity at 20°C/ 68°F 1.7241-1.7070 μΩcm
  2. Volume Conductivity at 20°C/ 68°F 58.00-58.58 MS/m
  3. Density 8.91 g/cm3
  4. Melting Point 1083 °C
  5. Excellent Corrosion Resistance
Edit Content

Size Range

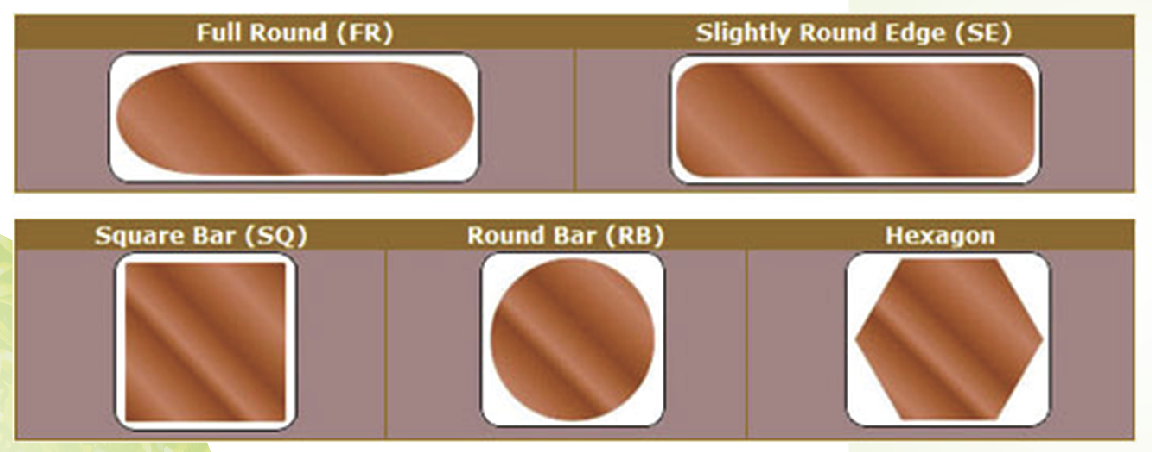

Shape

Edit Content

Wooden Boxes: Copper will be wrapped with insulated paper and plastic.


Bundles: Wrapped with insulated paper and plastic.

Let us know how we can help you. Our team is ready to discuss your business needs and answer any questions you may have.

Consult with our expert
